Nicotra Gebhardt Q2M Plug Fans - Direct-Driven Industrial Solutions

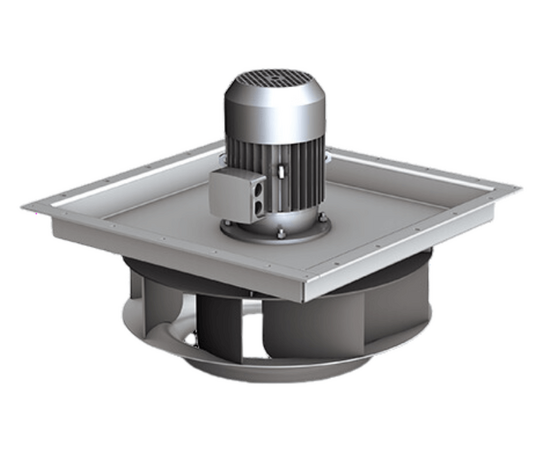

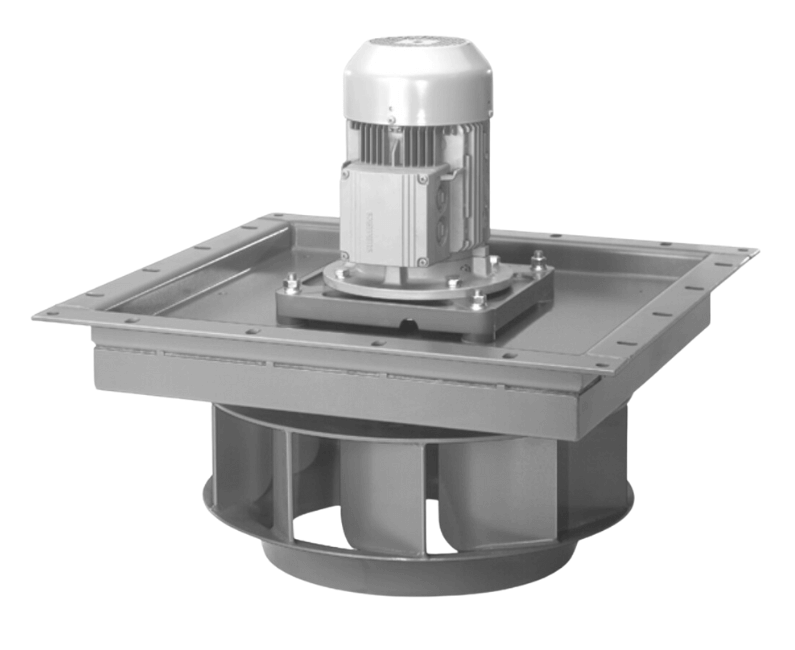

The Nicotra Gebhardt Q2M Plug Fan is a high-performance, direct-driven fan designed for demanding industrial and process applications. Engineered without a scroll, it is equipped with a flat mounting plate, a mounting frame, and advanced Thermolock50 insulation for optimal thermal efficiency. The Q2M fan is available in various models, with impeller diameters ranging from 280 mm to 1,400 mm, offering powerful air movement and dust-repellent, backward-curved blades for efficient performance.

Built for versatility, the Q2M fan supports media temperatures from -20°C to +500°C and is ATEX-certified for categories 2 and 3 (gas and dust). Constructed from durable materials like coated steel, hot-dip galvanized steel, and optional stainless steel (1.4307 or 1.4571), it delivers exceptional durability and reliability in harsh environments.

Key Features:

• Impeller Diameter: 280 mm to 1,400 mm, backward-curved and dust-repellent.
• High-Temperature Operation: Handles media temperatures up to 500°C.
• Thermal Efficiency: Advanced Thermolock50 insulation for energy savings.
• Robust Design: Coated steel or stainless steel construction.
• ATEX-Certified: Suitable for hazardous environments (gas and dust).
• Versatile Installation: Flat mounting plate and extensive accessories for easy integration.

The Q2M Plug Fan is ideal for industrial applications such as cooling, ventilation, and hot air circulation, offering exceptional performance and reliability. Available now at MEP Global.
