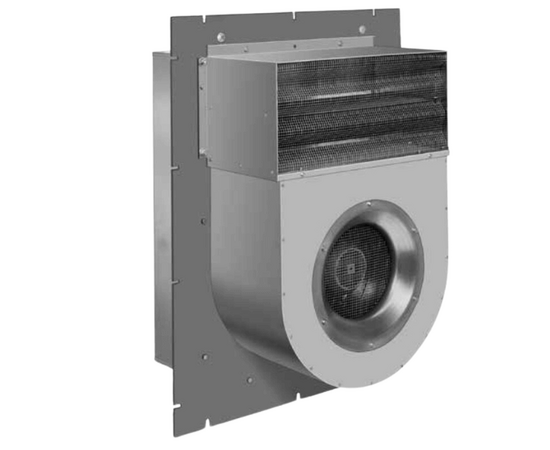

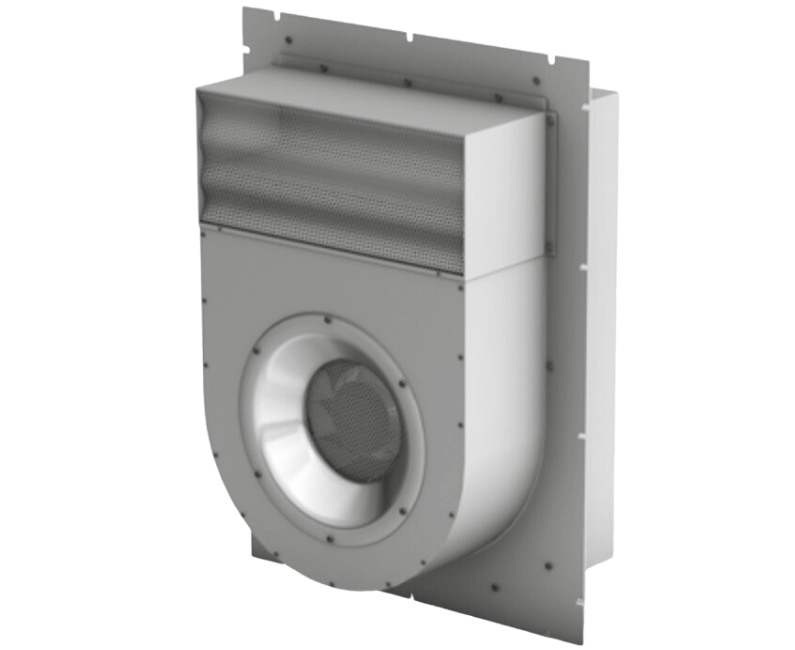

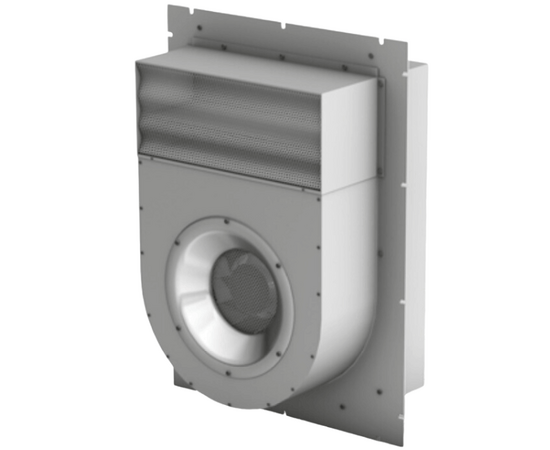

Nicotra Gebhardt RWM 57 Smoke Extract Fans | Reliable Smoke Ventilation

The Nicotra Gebhardt RWM 57 Smoke Extract Fan is an advanced solution designed to ensure safety during fire emergencies by providing reliable smoke extraction and ventilation. Built with precision and durability, the RWM 57 can handle temperatures of up to +600°C for 120 minutes, meeting the highest safety standards. It is also approved for continuous operation at temperatures of up to +80°C, making it suitable for both emergency smoke extraction and permanent ventilation.

With an impressive airflow capacity of up to 37,000 m³/h and pressure up to 1,000 Pa, the RWM 57 is engineered to deliver high-performance ventilation in critical scenarios. Its horizontal air output design, combined with a durable casing made of galvanized or coated sheet steel, ensures long-term reliability and robustness. The add-on motor, fully separate from the airflow, offers flexibility with various motor configurations.

The RWM 57 is easy to install, featuring a pipe connection aligned with DIN 24155-2 on the suction side and a protective grille on the output opening. It also includes a connecting cable without a plug for seamless integration into your setup.

For enhanced functionality, the RWM 57 comes with a complete range of tested accessories, including components for façade integration, duct connection, and a specialized electrical system with smoke detector switchgear, an optical smoke detector, and a manual trigger button.

Key Features:

• High-Temperature Resistance: Operates at +600°C for 120 minutes for reliable smoke extraction.
• Continuous Ventilation: Approved for permanent ventilation at up to +80°C.
• Exceptional Capacity: Conveys up to 37,000 m³/h airflow and handles pressure up to 1,000 Pa.
• Robust Construction: Made with galvanized or coated sheet steel for durability.
• Flexible Motor Options: The add-on motor is completely separate from the airflow.
• Effortless Installation: DIN-compliant pipe connection and pre-installed components for ease of integration.
• Comprehensive Accessories: Includes certified smoke detection systems and connection components.

Variations are: RWM 57-2528, RWM 57-3540, RWM 57-4045, RWM 57-4550, RWM 57-5056, RWM 57-5663, RWM 57-6371, RWM 57-7180, RWM 57-2528/-8090

The Nicotra Gebhardt RWM 57 Smoke Extract Fan is ideal for industrial and commercial buildings, parking garages, and other critical spaces requiring efficient smoke extraction and ventilation.
